H-beam
Standard
- U.S. Standard
- British Standard
- Australian Standard
- European Standard
Model
- A36
- A92
- A572Gr50
- S275JR
- S355JR
- S355J2
- S355NL
Category：
H-Beam

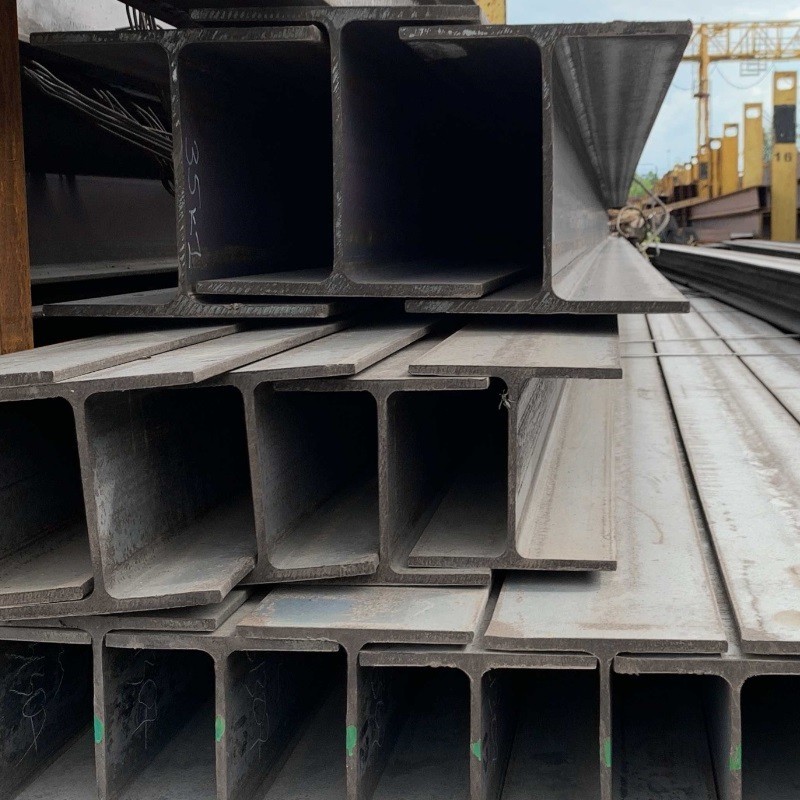

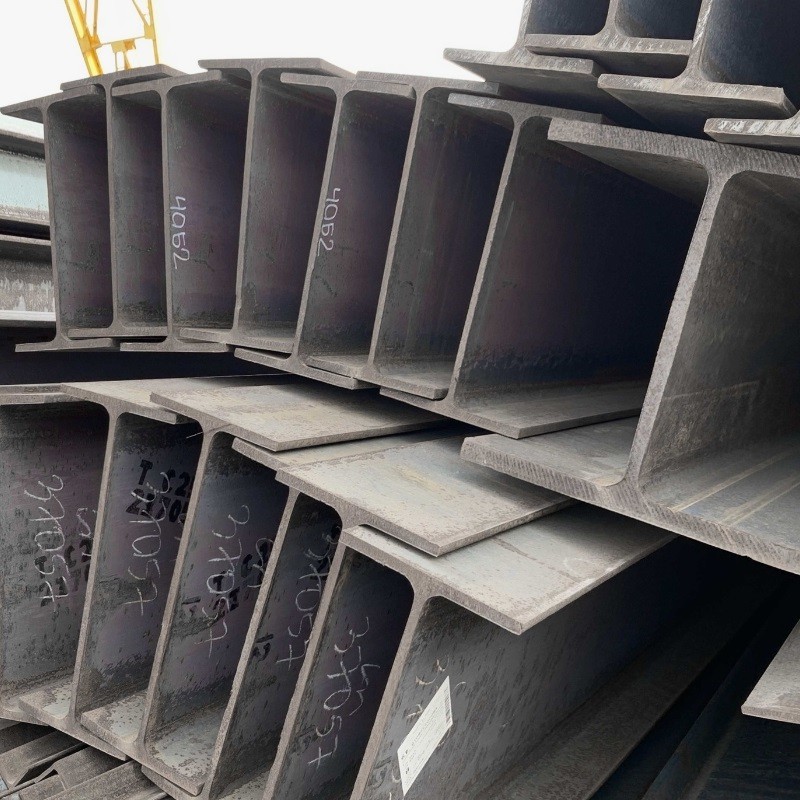

H-beam
Standard
- U.S. Standard
- British Standard
- Australian Standard
- European Standard
Model
- A36
- A92
- A572Gr50
- S275JR
- S355JR
- S355J2
- S355NL
H Section ASTM
Dimensions and Sectional Properties（1）ASTM A6-2014
| Designation | Unit Weight (lbs/ft) | Unit Weight (kg/m) | Standard Sectional Dimension (mm) | Sectional Area (cm²) | ||||
| W | M | H | B | t 1 | t2 | r | A | |
| W4 x 4 | 13 | 19.3 | 106 | 103 | 7.1 | 8.8 | 7.6 | 24.90 |
| W5 x 5 | 16 | 23.8 | 127 | 127 | 6.1 | 9.1 | 7.6 | 30.26 |
| 19 | 28.1 | 131 | 128 | 6.9 | 10.9 | 7.6 | 35.88 | |
| W6 x 4 | 8.5 | 13 | 148 | 100 | 4.3 | 4.9 | 7.6 | 16.25 |
| 9 | 13.5 | 150 | 100 | 4.3 | 5.5 | 7.6 | 17.48 | |
| 12 | 18 | 153 | 102 | 5.8 | 7.1 | 7.6 | 22.99 | |
| 16 | 24 | 160 | 102 | 6.6 | 10.3 | 7.6 | 30.76 | |
| W6 x 6 | 15 | 22.5 | 152 | 152 | 5.8 | 6.6 | 7.6 | 28.63 |
| 20 | 29.8 | 157 | 153 | 6.6 | 9.3 | 7.6 | 38.10 | |
| 25 | 37.1 | 162 | 154 | 8.1 | 11.6 | 7.6 | 47.57 | |
| W8 x 4 | 10 | 15 | 200 | 100 | 4.3 | 5.2 | 7.6 | 19.08 |
| 13 | 19.3 | 203 | 102 | 5.8 | 6.5 | 7.6 | 24.72 | |
| 15 | 22.5 | 206 | 102 | 6.2 | 8.0 | 7.6 | 28.60 | |
| W8 x 5¼ | 14 | 21.4 | 203 | 134 | 5.0 | 6.4 | 7.6 | 27.21 |
| 18 | 26.6 | 207 | 133 | 5.8 | 8.4 | 7.6 | 33.93 | |
| 21 | 31.3 | 210 | 134 | 6.4 | 10.2 | 7.6 | 39.97 | |
| W8 x 6½ | 24 | 35.9 | 201 | 165 | 6.2 | 10.2 | 10.2 | 45.78 |
| 28 | 41.7 | 205 | 166 | 7.2 | 11.8 | 10.2 | 53.11 | |
| W8 x 8 | 31 | 46.1 | 203 | 203 | 7.2 | 11.0 | 10.2 | 58.62 |
| 35 | 52 | 206 | 204 | 7.9 | 12.6 | 10.2 | 66.52 | |
| 40 | 59 | 210 | 205 | 9.1 | 14.2 | 10.2 | 75.60 | |
| 48 | 71 | 216 | 206 | 10.2 | 17.4 | 10.2 | 91.05 | |
| 58 | 86 | 222 | 209 | 13.0 | 20.6 | 10.2 | 110.5 | |
| 67 | 100 | 229 | 210 | 14.5 | 23.7 | 10.2 | 126.8 | |
| W10 x 4 | 12 | 17.9 | 251 | 101 | 4.8 | 5.3 | 7.6 | 22.68 |
| 15 | 22.3 | 254 | 102 | 5.8 | 6.9 | 7.6 | 28.43 | |
| 17 | 25.3 | 257 | 102 | 6.1 | 8.4 | 7.6 | 32.26 | |
| 19 | 28.4 | 260 | 102 | 6.4 | 10.0 | 7.6 | 36.28 | |
| W10 x 5¾ | 22 | 32.7 | 258 | 146 | 6.1 | 9.1 | 7.6 | 41.73 |
| 26 | 38.5 | 262 | 147 | 6.6 | 11.2 | 7.6 | 49.17 | |
| 30 | 44.8 | 266 | 148 | 7.6 | 13.0 | 7.6 | 57.10 | |
PACKING AND SHIPPING
